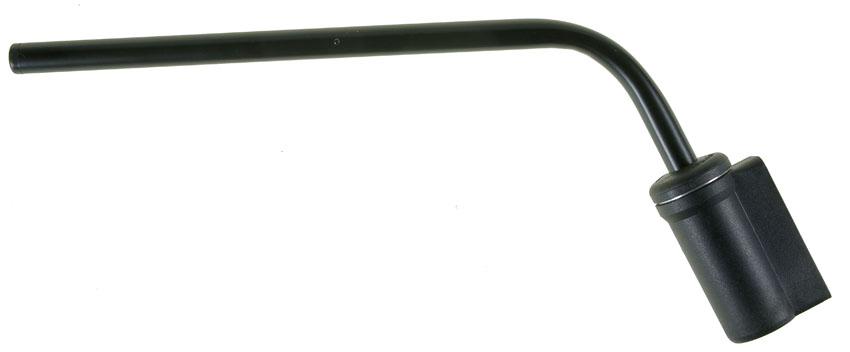

Series S900 Mirror Arms


Ashtree's S900 Series of arms are designed to be both strong and flexible.

The main body is moulded from a high impact polymer for greater strength, less vibration and a lower weight but the arms have two sets of opposing teeth made of zinc. This design feature helps to reduce wear between the two surfaces when the arms index.

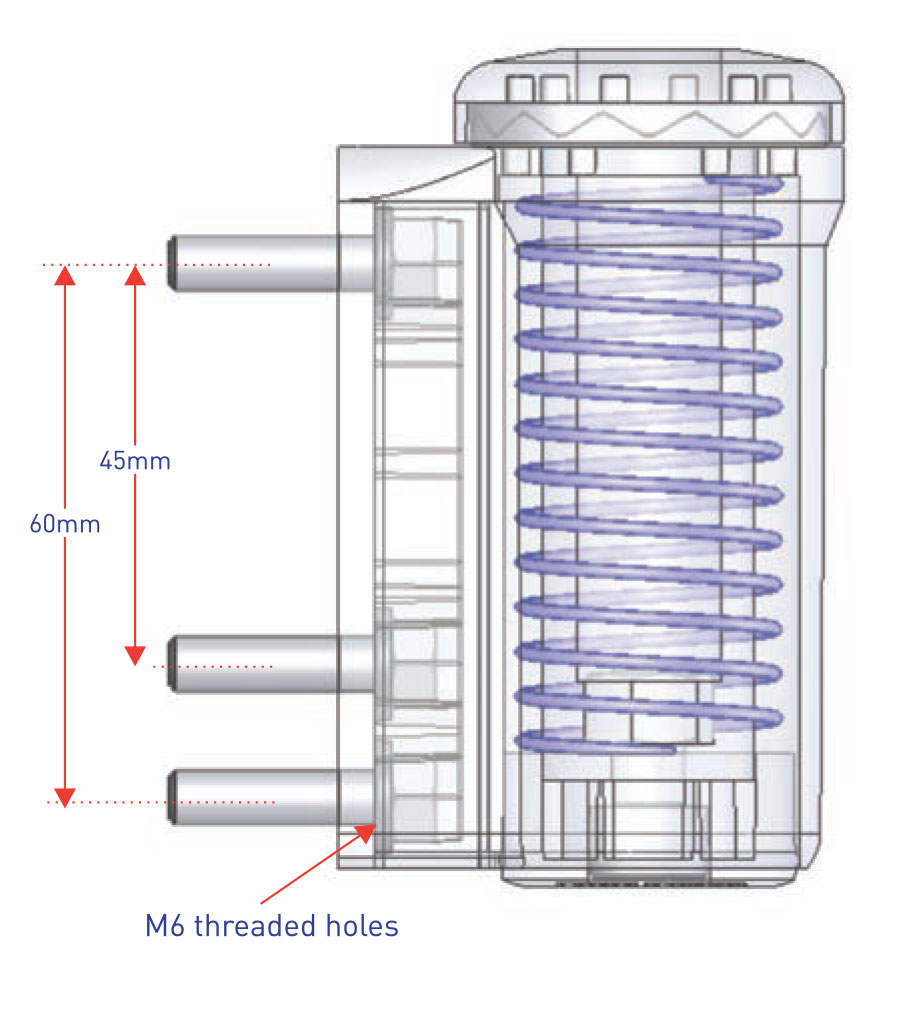

S900 spring

Most other mirror arms index at 45 degree increments, at best, but the S900 range adjust at 20 degree increments. This helps obtain the best possible viewing position for the mirror. Mounting the mirror couldn't be simpler. There are three M6 threaded holes set at either 45mm or 60mm centres or part number Y2089 can be used to mount them externally.

The S900 series of mirror arms are protected by UK patent GB2474435B
